MCP 协议是什么 MCP 是一个开放协议,用于标准化应用程序如何为大语言模型(LLM)提供上下文。可以将 MCP 想象成 AI 应用程序的 USB-C 接口。就像 USB-C 为连接各种外围设备和配件提供了标准化的方式,MCP 为将 AI 模型连接到不同的数据源和工具提供了标准化的方式。
MCP协议说明
MCP 使用 安装 1 2 pip install mcp pip install mcp[cli]
运行 python 创建 server.py 文件
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 from mcp.server.fastmcp import FastMCP mcp = FastMCP("Demo" )@mcp.tool() def add (a: int , b: int ) -> int : """Add two numbers""" return a + b@mcp.resource("greeting://{name}" ) def get_greeting (name: str ) -> str : """Get a personalized greeting""" return f"Hello, {name} !"
运行 dev
然后在浏览器打开 http://localhost:5173/
能够看到
MCP Inspector
与 Claude Desktop 联调 执行
然后会在 claude 目录下 AppData\Roaming\Claude
下生成 claude_desktop_config.json
文件,默认是包含 uv
命令的,我修改为以下内容:
1 2 3 4 5 6 7 8 9 10 11 { "mcpServers" : { "Demo" : { "command" : "mcp" , "args" : [ "run" , "D:\\sjj\\script\\mcp_test\\server.py" ] } } }
然后重启 Claude Desktop ,出现了以下内容:
image-20250328113652395
执行加法:

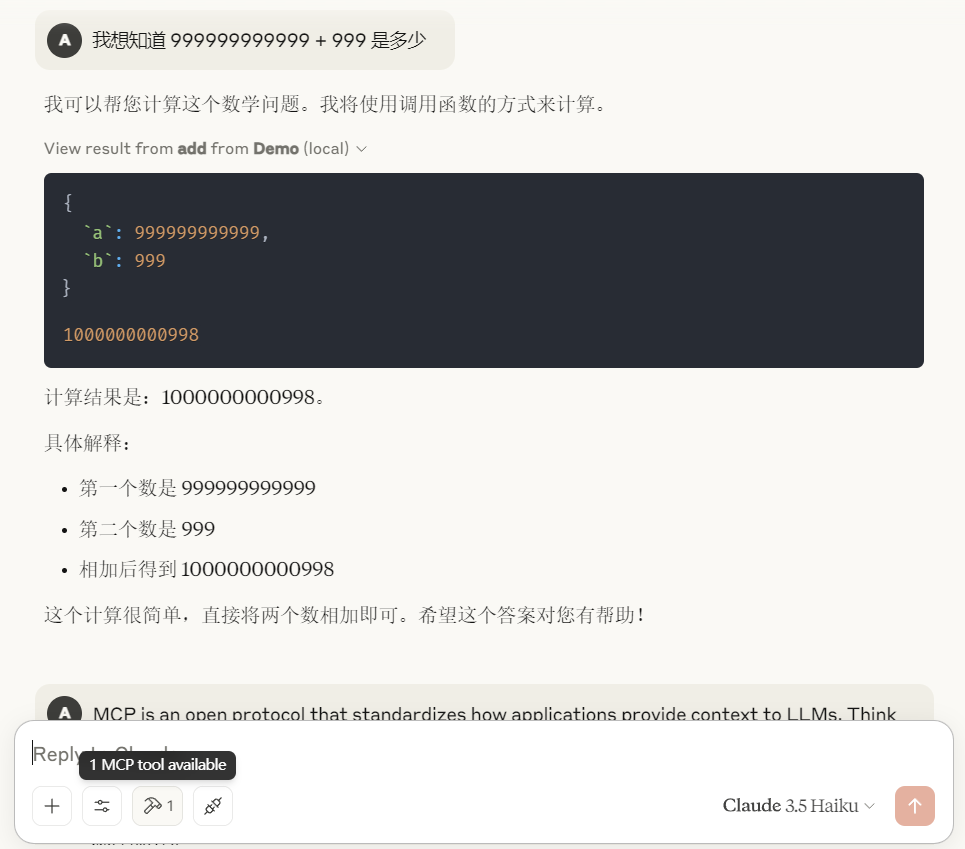

image-20250328113721120
自己编写一个操作数据库的 MCP Server server.py 代码 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 import MySQLdbfrom mcp.server.fastmcp import FastMCP mcp = FastMCP("MySQL Explorer" ) conn = MySQLdb.connect( host="127.0.0.1" , port=3306 , user="root" , password="root" , )@mcp.resource("schema://main" ) def get_schema () -> str : """Provide the database schema as a resource""" cursor = conn.cursor() cursor.execute("SHOW TABLES" ) tables = cursor.fetchall() schema = [] for table in tables: table_name = table[0 ] cursor.execute(f"SHOW CREATE TABLE `{table_name} `" ) create_table_sql = cursor.fetchone()[1 ] schema.append(create_table_sql) return "\n" .join(schema)@mcp.tool() def query_data (sql: str ) -> str : """Execute SQL queries safely""" try : cursor = conn.cursor() cursor.execute(sql) result = cursor.fetchall() return "\n" .join(str (row) for row in result) except Exception as e: return f"Error: {str (e)} "
然后 MCP Inspector 获取 resource 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 curl 'http://localhost:3000/message?sessionId=c73d174d-8772-441a-bfa1-1771ad358aa1' \ -H 'Accept: */*' \ -H 'Accept-Language: zh-CN,zh;q=0.9,en;q=0.8,en-GB;q=0.7,en-US;q=0.6' \ -H 'Connection: keep-alive' \ -H 'Origin: http://localhost:5173' \ -H 'Referer: http://localhost:5173/' \ -H 'Sec-Fetch-Dest: empty' \ -H 'Sec-Fetch-Mode: cors' \ -H 'Sec-Fetch-Site: same-site' \ -H 'User-Agent: Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/134.0.0.0 Safari/537.36 Edg/134.0.0.0' \ -H 'content-type: application/json' \ -H 'sec-ch-ua: "Chromium";v="134", "Not:A-Brand";v="24", "Microsoft Edge";v="134"' \ -H 'sec-ch-ua-mobile: ?0' \ -H 'sec-ch-ua-platform: "Windows"' \ --data-raw '{"method":"resources/list","params":{},"jsonrpc":"2.0","id":1}'

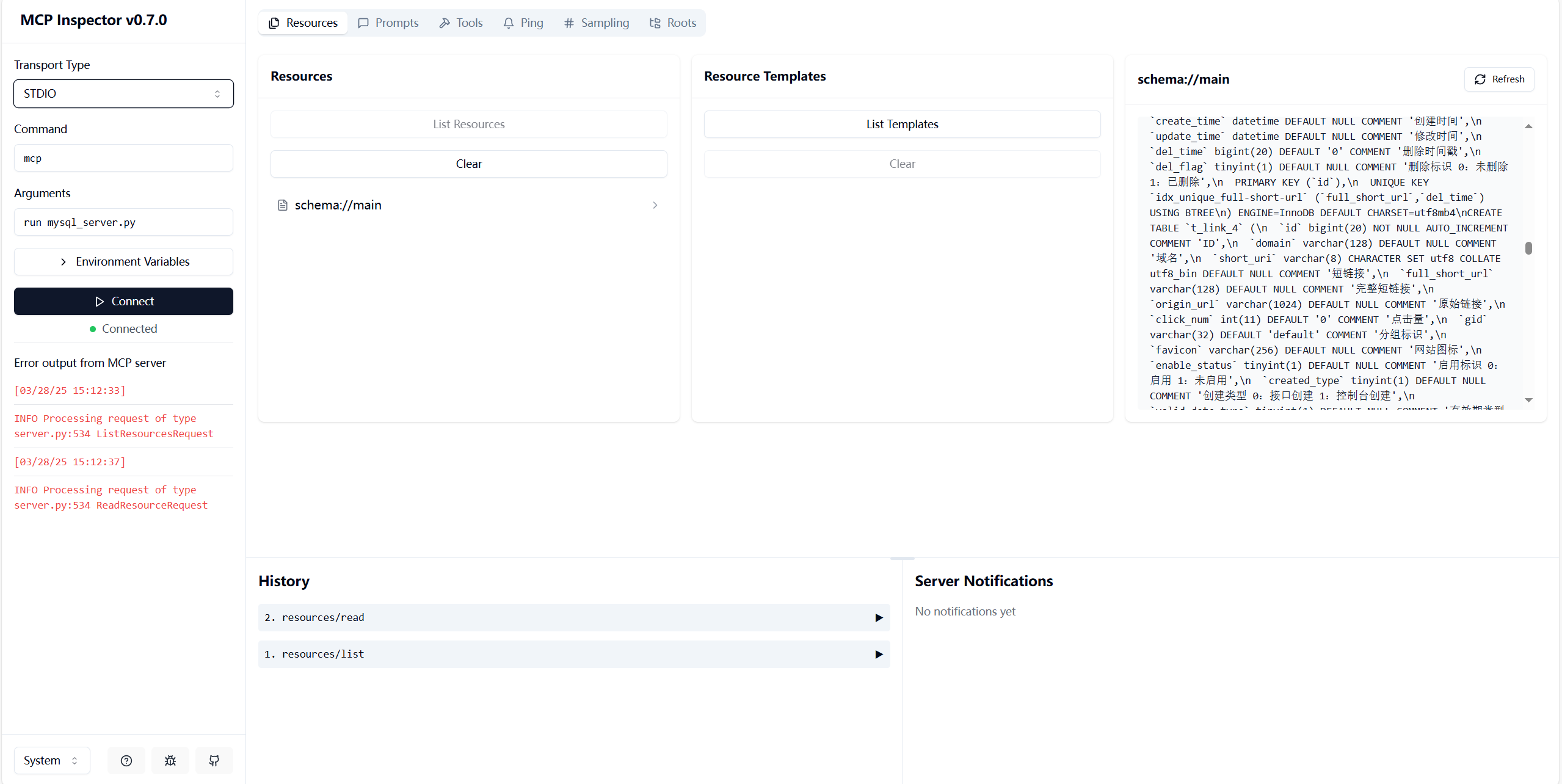

在网页上得到了 schema image-20250328151443784
安装到 Claude 1 mcp install .\mysql_server.py --with mysqlclient
Claude 配置文件
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 { "mcpServers" : { "Demo" : { "command" : "mcp" , "args" : [ "run" , "D:\\sjj\\script\\mcp_test\\server.py" ] } , "MySQL Explorer" : { "command" : "mcp" , "args" : [ "run" , "--with" , "mysqlclient" , "D:\\sjj\\script\\mcp_test\\mysql_server.py" ] } } }
开始测试 image-20250328153747577

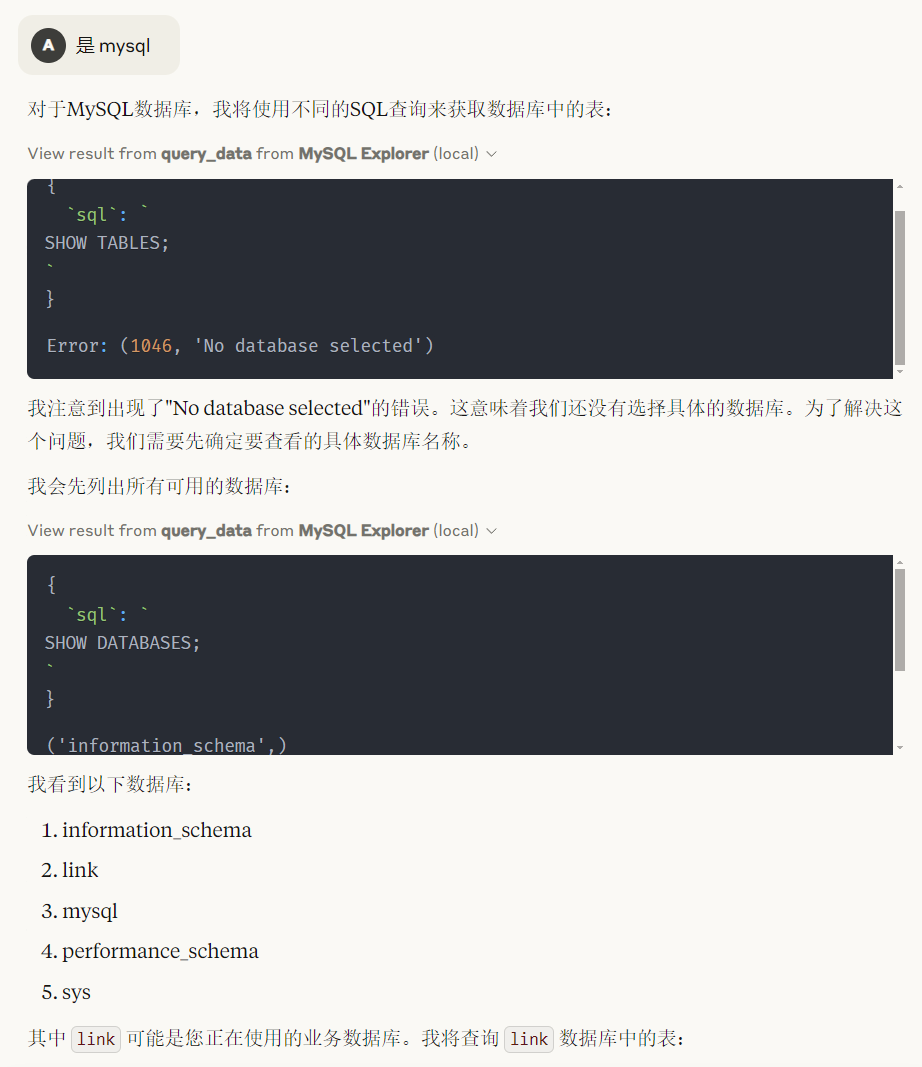

image-20250328153758113

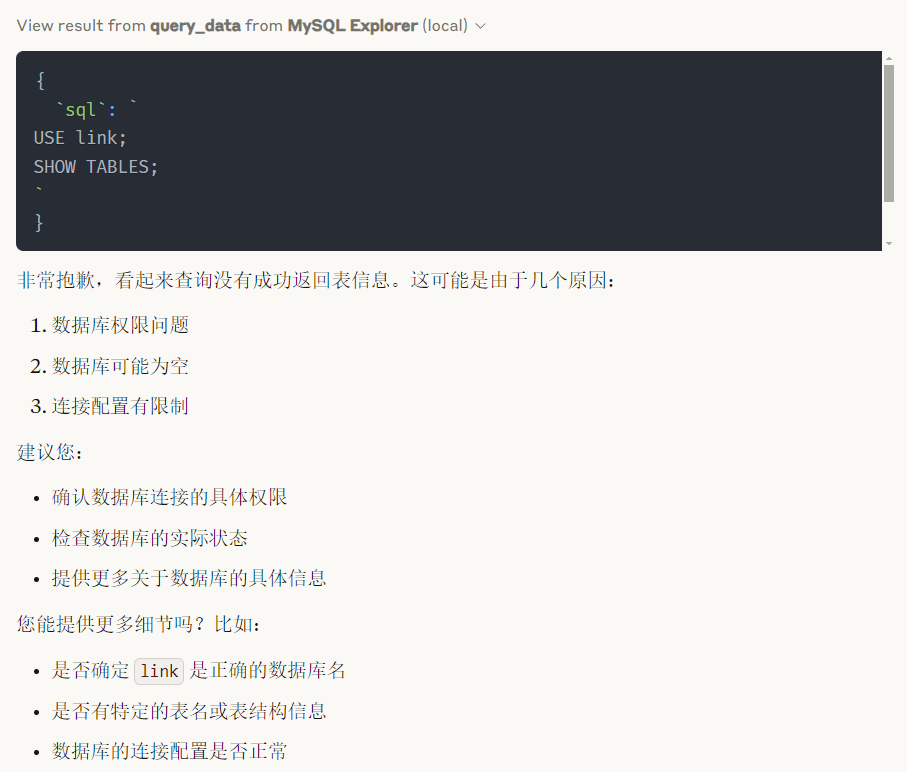

image-20250328153822340

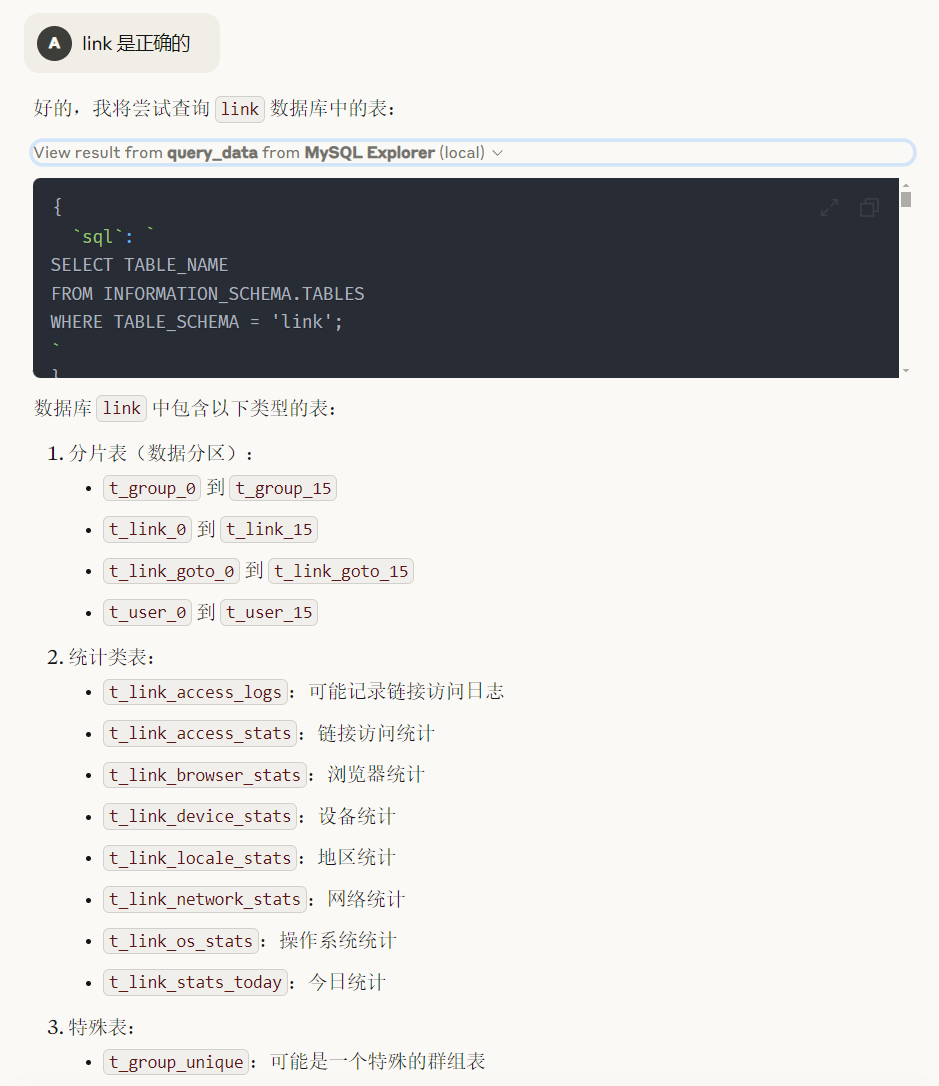

image-20250328153835288

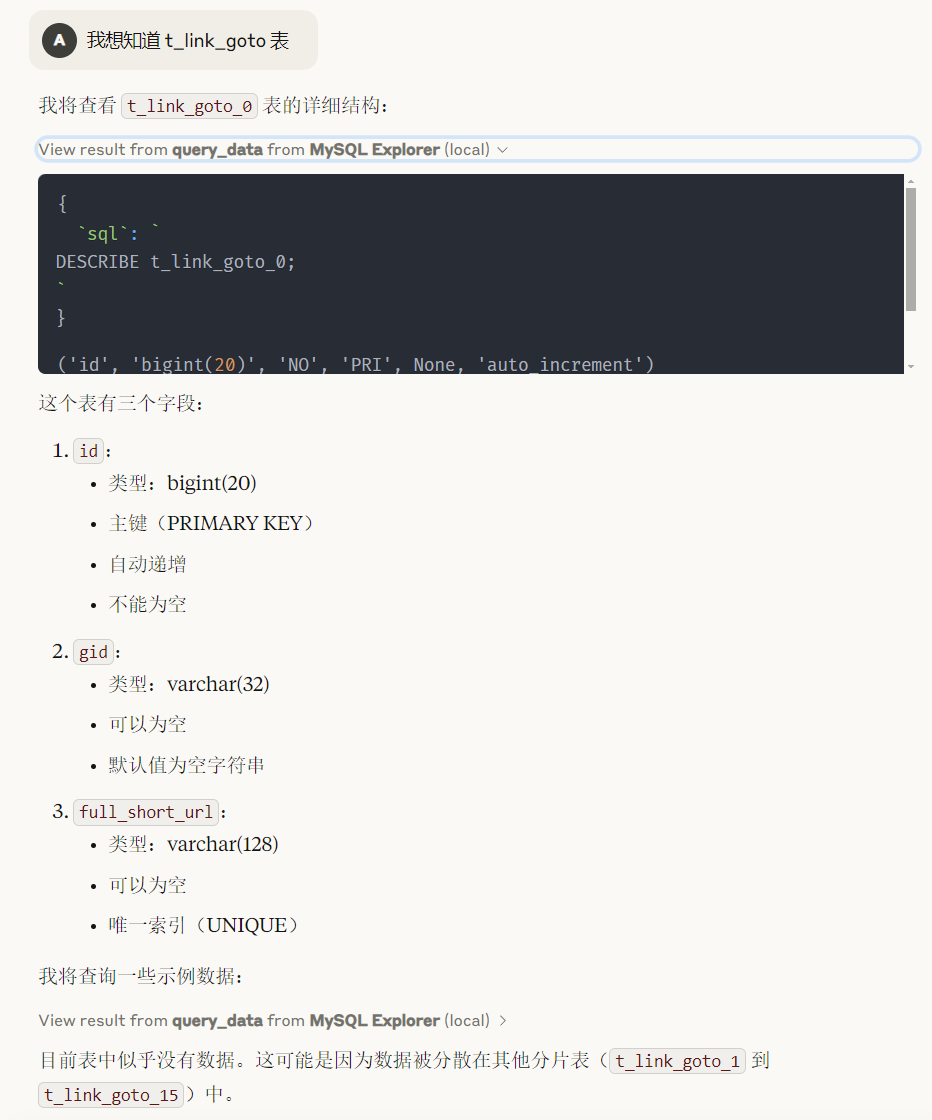

image-20250328153845382

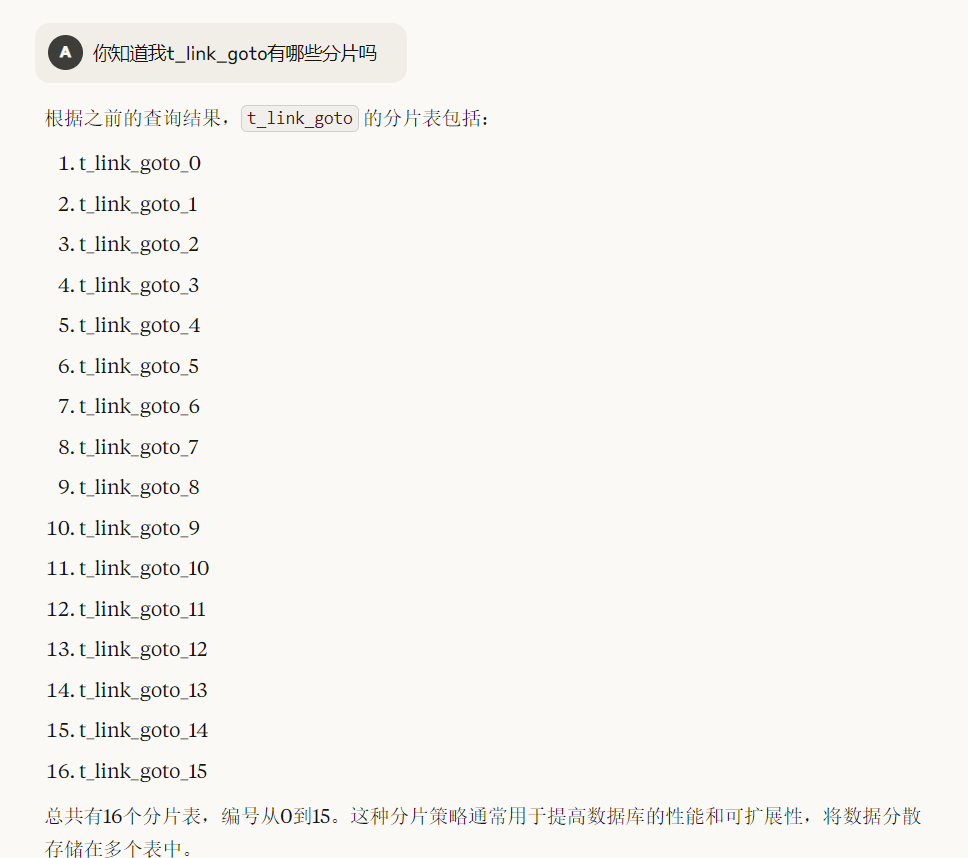

image-20250328153857103

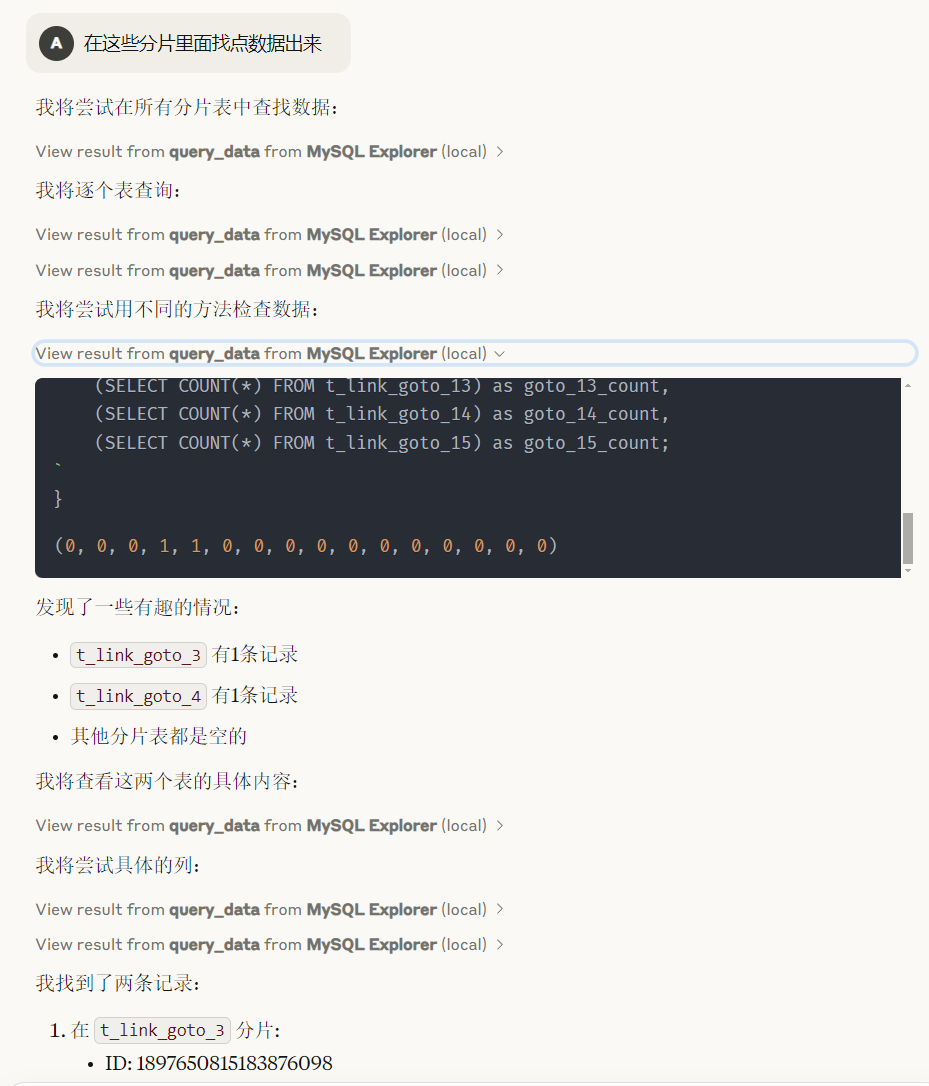

image-20250328153916122

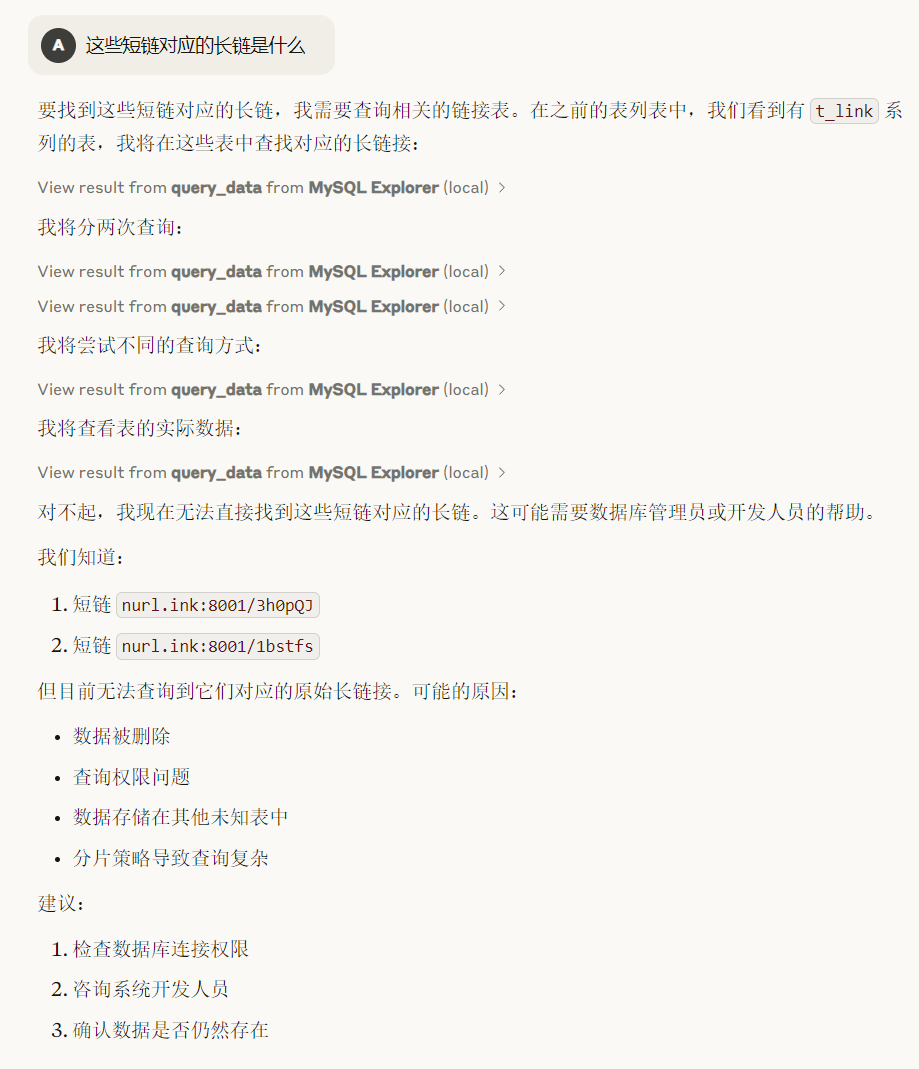

image-20250328153926680
